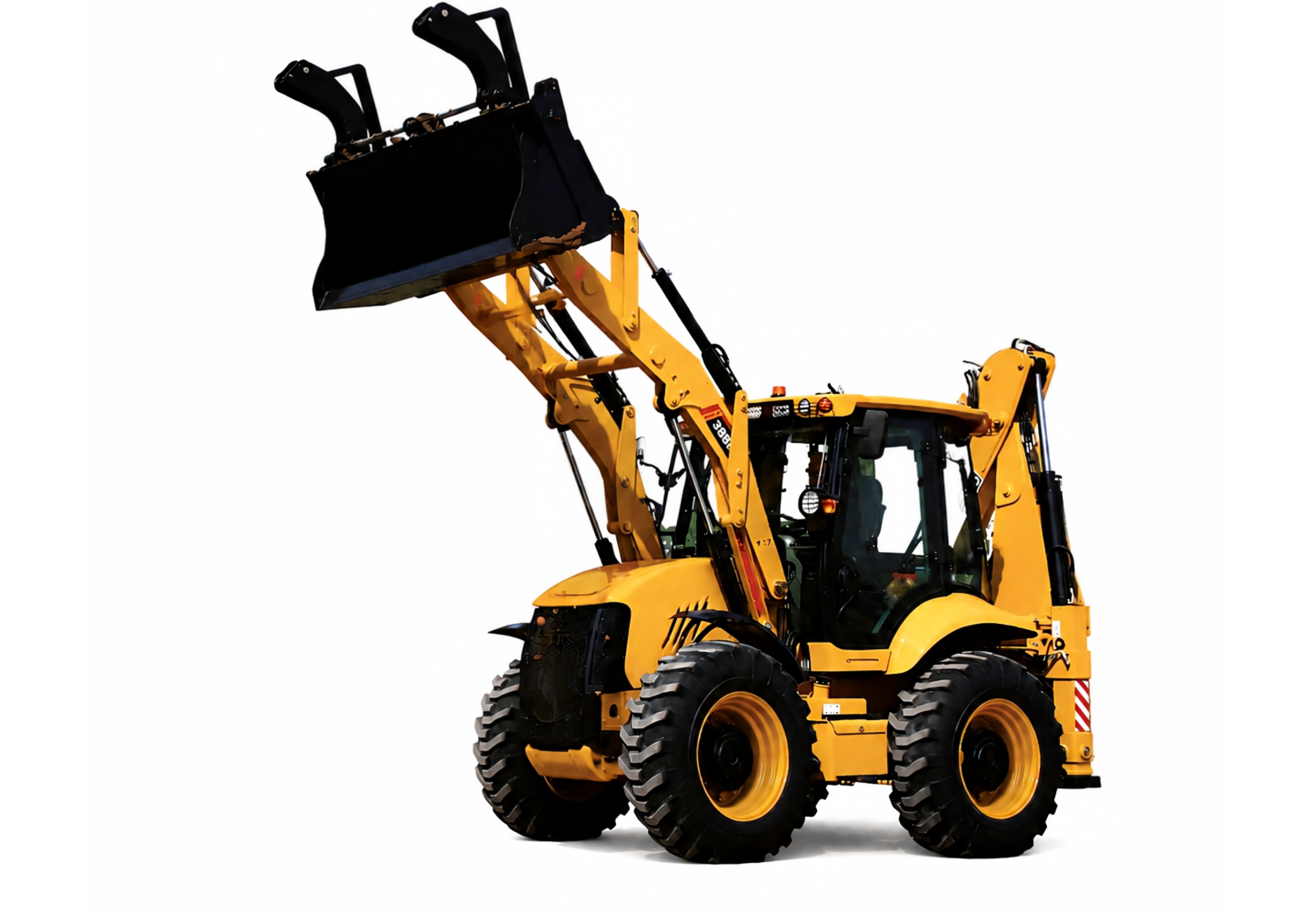

□Upgraded high-power engine with stronger power. □Configure Carraro drive axle and gearbox, Danfoss load sensitive hydraulic system. □Three steering modes provide you with more choices and excellent production efficiency. □FOPS&ROPS integral cab, optional rotating seat integrated work control handle. □The excavation work device adopts hydraulic sliding,which is more convenient to operate. □The optional vehicle stabilization system reduces bumps during driving and increases comfort.

Operating weight

10800KG Wheel base 2293±10mm

Overall dimension(L×W×H)

6554×2543×3660mm Wheel tread 2050±10mm

Ground clearance

475mm

Load bucket capacity

1.2m³ Backhoe bucket capacity 0.3m³

Load breakout force

47KN Backhoe digging force 49.8KN

Load lifting capacity

2500KG Backhoe swing angle 180°

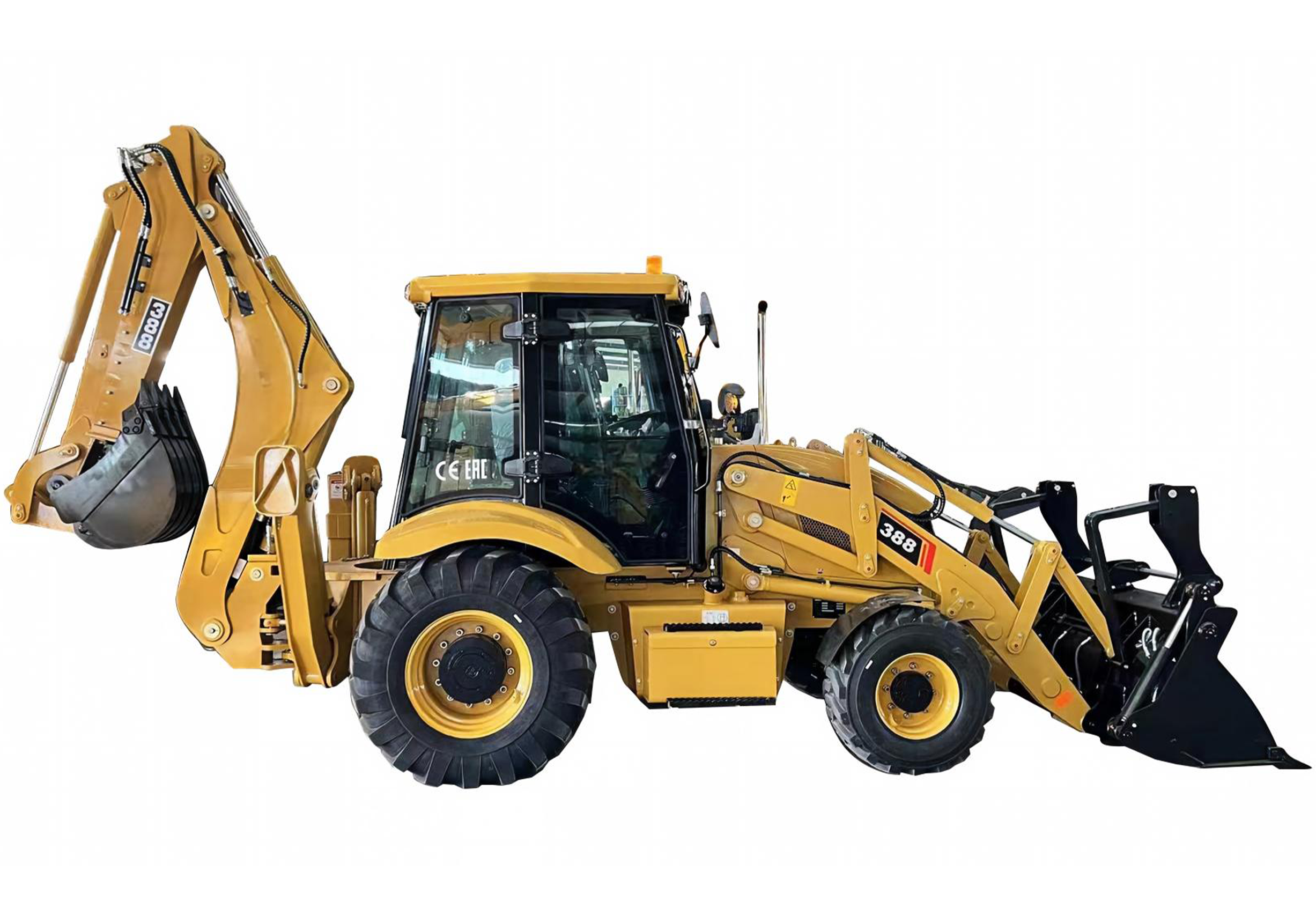

□Configure Carraro drive axle and gearbox. □FOPS&ROPS integral cab. □The excavation work device adopts hydraulic sliding, which is more convenient to operate. □The optional vehicle stabilization system reduces bumps during driving and increases comfort. □The integrated rear fip hood is convenient for opening, maintenance, and repair.

总体尺寸overalldimensions

整车操作质量operating weight 8600KG 轴距wheel base 2280mm

整机外形尺寸overalldimension(LXWXH)

6050x2484x3453mm 轮距wheel tread 1785mm

最小离地间隙Ground clearance

300mm

性能performance

装载斗容 Load bucket capacity 3 反铲斗容 Backhoe bucket capacity 3

崛起力 Load breakout force

47KN 挖斗挖掘力 Backhoe digging force 49.8KN

装载举升能力 Load lifting capacity

2500KG 挖掘回转角 Backhoe swing angle 180'
