□All wheel drive, all wheel steering. hydraulic braking. □Optional Cummins, Weichai, Yuchai and other engines are available, with options for hydraulic transmission or hydrostatic transmission. □Equipped with diverse accessories, including high-altitude work platforms, buckets, and grabs. □One handed control lever, hydraulic quick change system, simple and convenient operation.

Length(with bucket onground)

6630±50mm

Length(Forks are placed on the ground)

6425±50mm

Length(No forks,no buckets)

5415±50mm

0verall width (Tire outer edge, hood outer edge)

2280±20mm

Load Bucket width

2330±10 mm

Height(To the top of the cabin)

2580±20mm

□All wheel drive, all wheel steering, hydraulic braking. □Optional Cummins, Weichai, Yuchai and other engines are available, with options for hydraulic transmission or hydrostatic transmission. □Equipped with diverse accessories, including high-altitude work platforms, buckets, and grabs. □One handed control lever, hydraulic quick change system, simple and convenient operation.

Length(with bucket onground)

6010±50mm

Length(Forks are placed on the ground)

5840±50mm

Length(No forks,no buckets)

4800±50mm

Overall width(Tire outer edge, hood outeredge)

2280±20mm

Load Bucket width

2330±10 mm

Height(To the top of the cabin)

2540±20mm

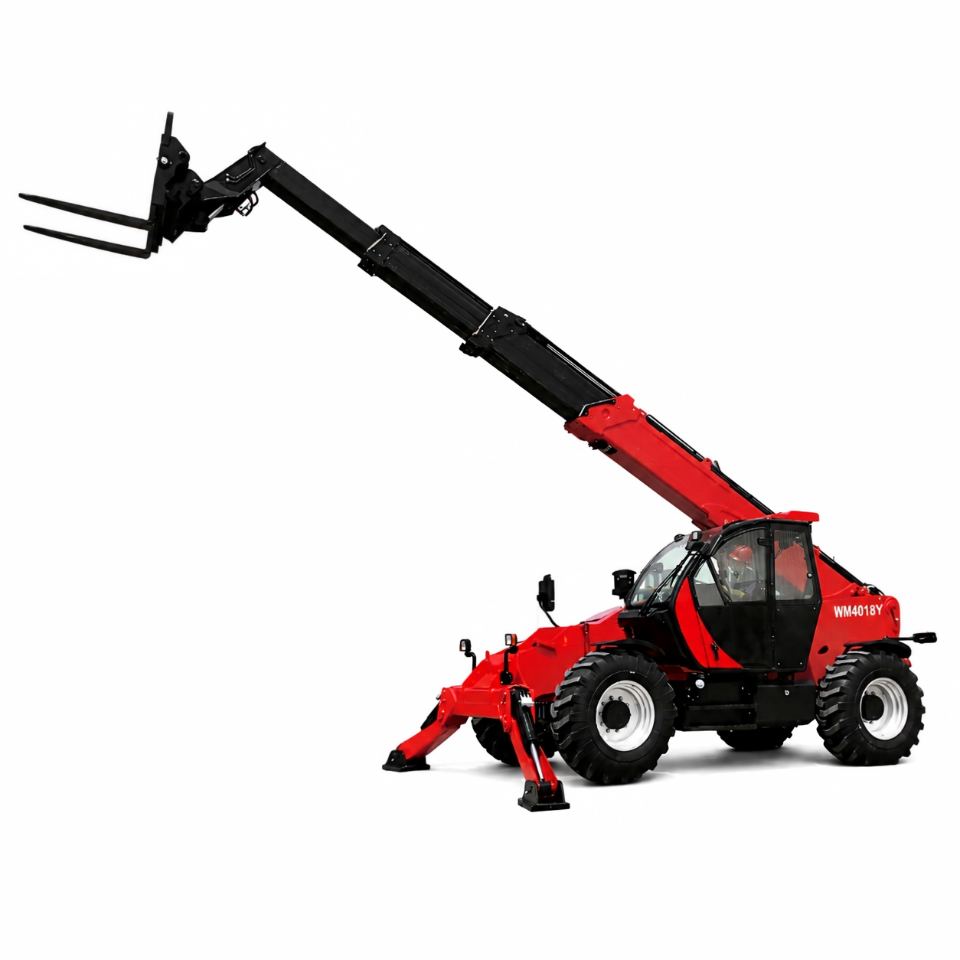

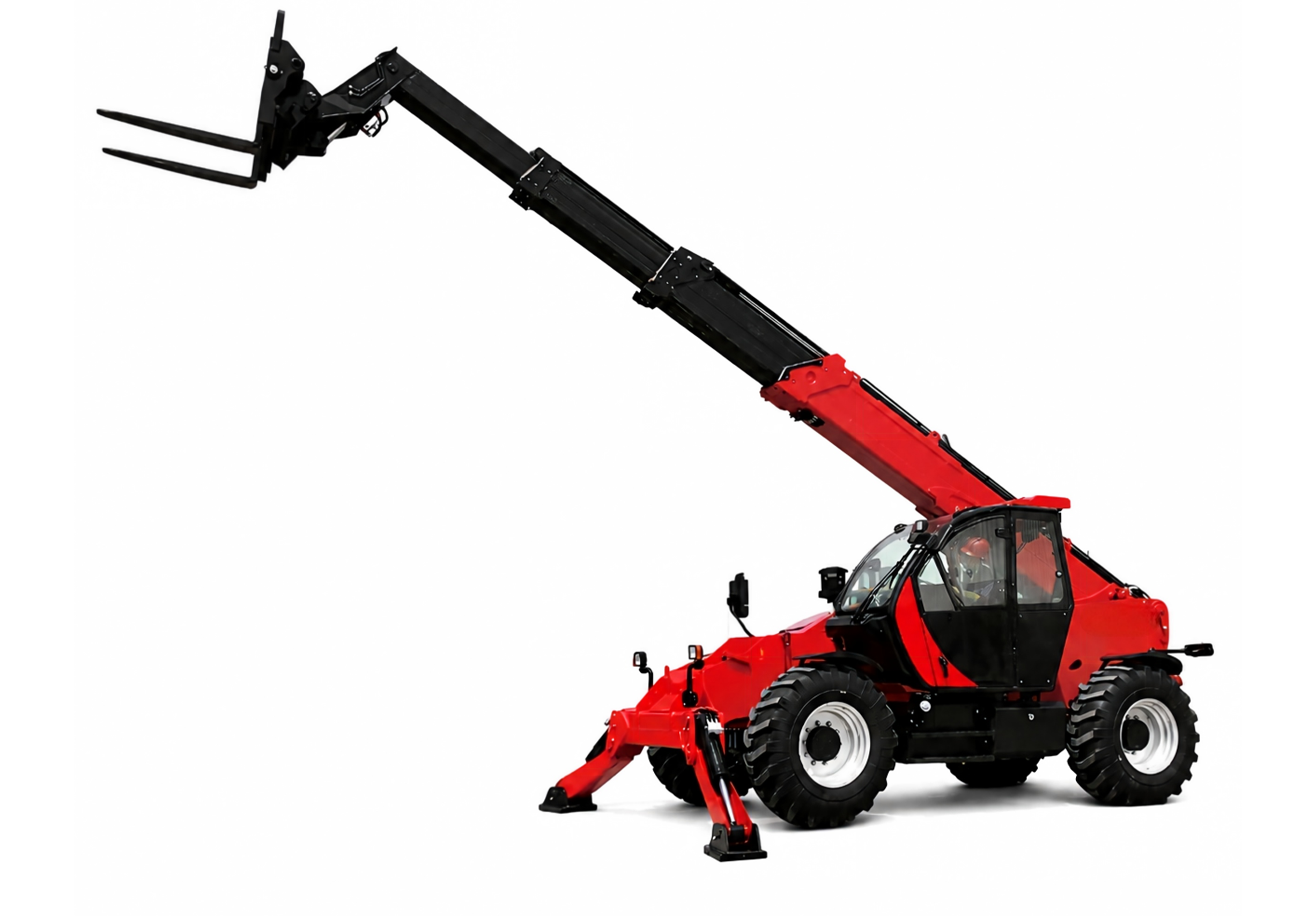

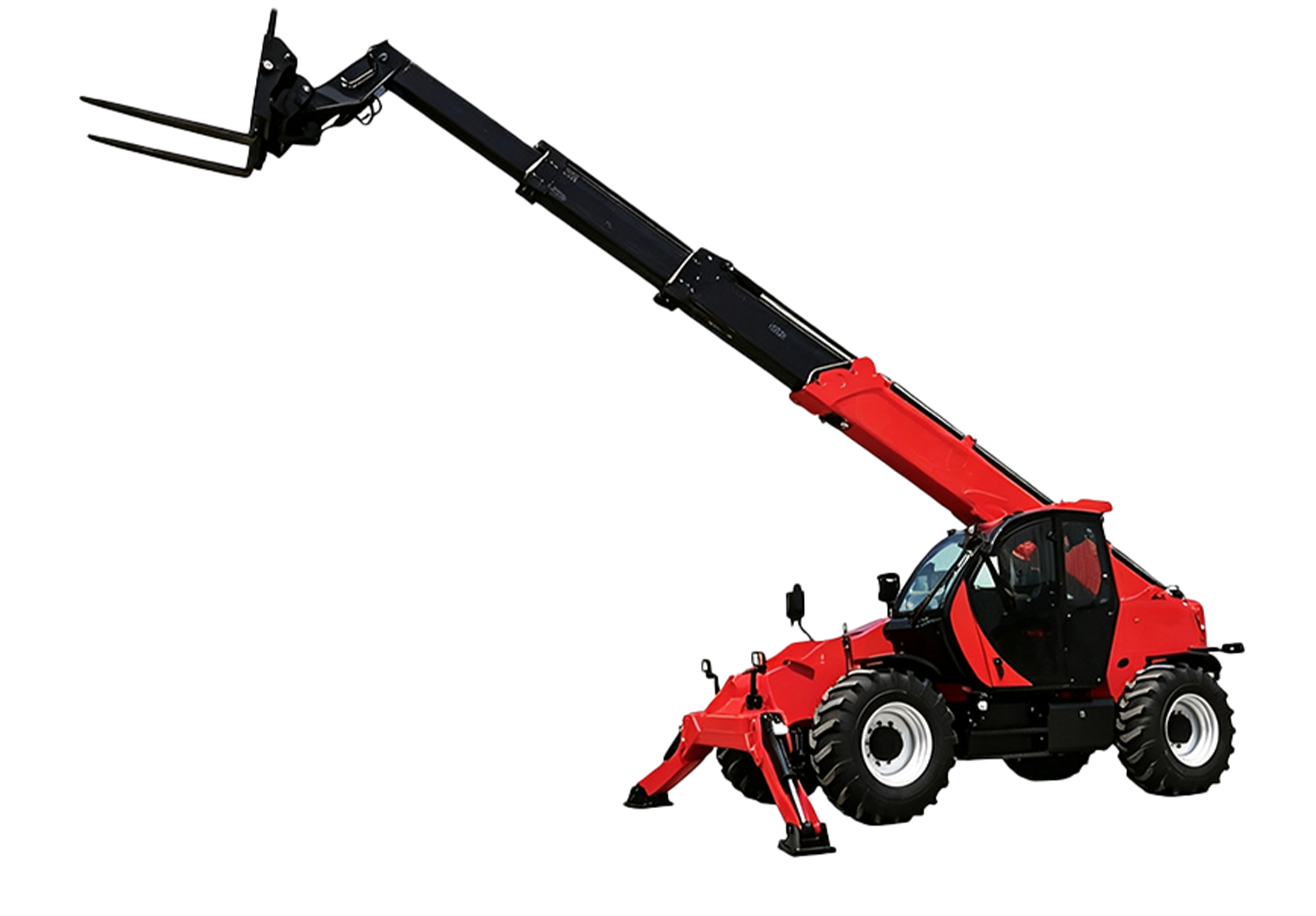

□All wheel drive, all wheel steering. hydraulic braking. □Optional Cummins, Weichai, Yuchai and other engines; optional hydrodynamic or hydrostatic transmission; optional Rexroth, Danoss hydraulic system. □Equipped with a variety of accessories, including high-altitude work platforms, buckets, and grabs. □One handed control lever, hydraulic quick change system, simple and convenient operation.

Length(with bucket on ground)

7700±50mm

Length(Forks are placed onthe ground)

7500±50mm

Length(No forks,no buckets)

6330±50mm

Overall width (Tire outer edge, hood outer edge)

2420±50mm

The overall width of the whole machine (the hydraulic outriggers are fully open)

3800±50mm

Height(To the top of the cabin)

2815±20mm
